产品名称：RY1303 3 Channel 5.5V 2A 1.2MHz DC/DC Step down PMU
型号： RY1303
产片介绍：The RY1303 is a 3-CH power management IC for applications powered by one Li-Ion battery or a DC 5V adapter It integrates three synchronous buck regulators and can provide high efficiency output at light load and heavy load operation
产片介绍：The RY1303 is a 3-CH power management IC for applications powered by one Li-Ion battery or a DC 5V adapter It integrates three synchronous buck regulators and can provide high efficiency output at light load and heavy load operation
┄┄┄详细介绍┄┄┄
General Description
The RY1303 is a 3-CH power management IC for applications powered by one Li-Ion battery or a DC 5V adapter. It integrates three synchronous buck regulators and can provide high efficiency output at light load and heavy load operation. The internal compensation architecture simplifies the application circuit design. Besides, the independent enable control makes the designer have the greatest flexibility to optimize timing for power sequencing purposes.
The RY1303 is available in a 20-pin QFN 3×3 package.
Features
• 2.7V to 5.5V Input Voltage Range
• Three Buck Converters
• Typical Feedback Voltage: 0.6V
• Maximum Continuous Load Current:2A (3CH total output power consumption must be
less than 6W)
• <1uA Shutdown Current
• Fixed 1.2MHz Switching Frequency
• 100% Duty Cycle Low Dropout Operation
• Independent Enable Control
• Internal Compensation
• Cycle-by-Cycle Current Limit
• Short Circuit Protection
• Each Channel Efficiency Up to 95%
• Auto Recovery OTP Protection
• Available in QFN20-3×3 Package
Applications
• IP Camera • DVR
• Video Door Bell • OTT/STB

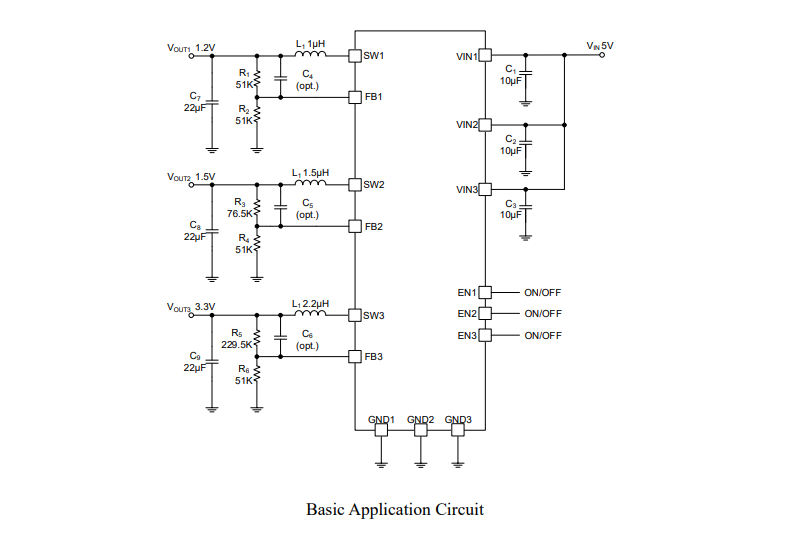

Typical Applications
